Floor Talks/Techniques/Troubleshooting & Repairs

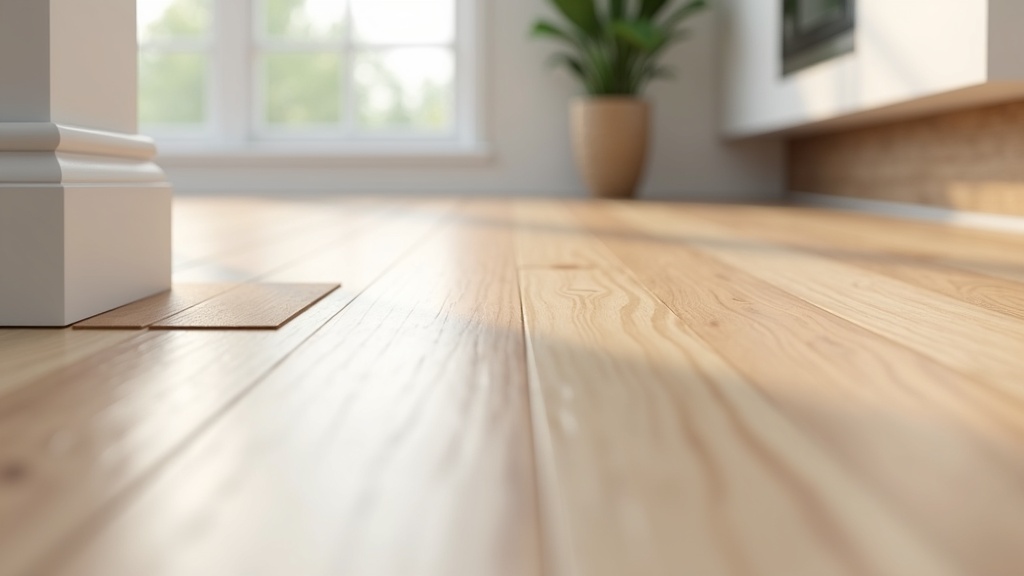

Vinyl Plank Edges Lifting at the Walls: Causes at the Perimeter and the Fixes That Hold

When planks curl or lift along the walls rather than in the middle of a room, the cause is usually at the perimeter. Closed-up expansion space, fixed trim, hard caulk, moisture and narrow cuts.

In short

Edges that lift along the walls usually mean the floor has met the wall: the expansion space was too small, or trim or caulk has fixed the edge.1 2 Moisture at exterior walls can make glued edges curl, and planks stored badly can arrive with curled edges.3 4 Narrow last-row cuts and unsupported tongues are weaker at the wall.5

A vinyl plank floor that lifts in the middle of a room has a problem in the field. One that lifts or curls along the walls has a problem at the edge. That is useful, because the perimeter is where the expansion space, the baseboards, the caulk and the last-row cuts all sit. Most perimeter failures trace back to one of them.

The floor has reached the wall

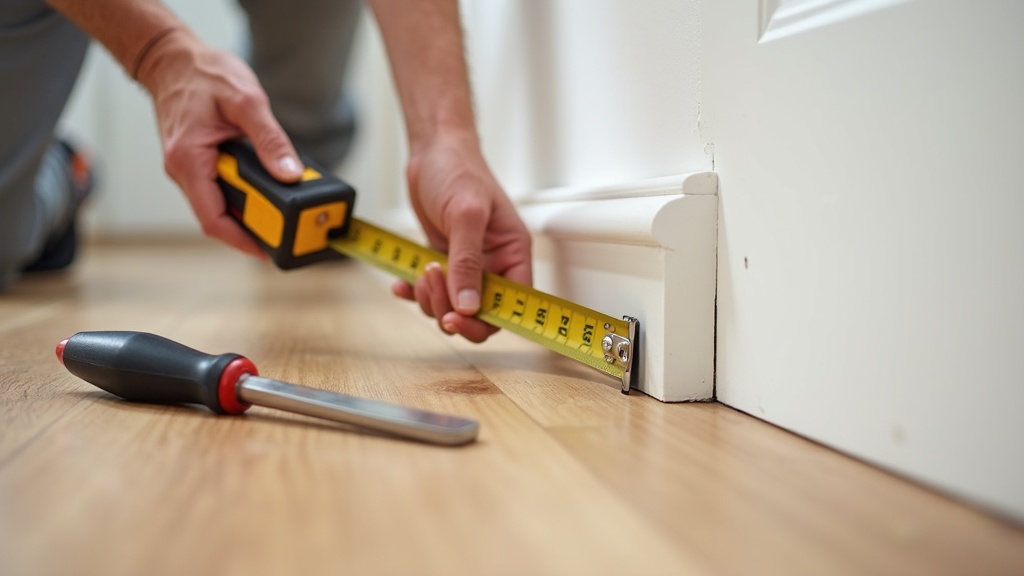

A floating floor needs room to grow at its edges. When the planks expand into the wall and keep going, the edge has nowhere to go but up. The required space varies by product, so read the guide on the job. Daltile asks for a 3/8 inch expansion space around all walls and vertical objects.1 Elite recommends at least 3/8 inch between the floor and any perimeter wall or vertical structure.2 Timeless Designs plans 5/16 inch gaps from the wall during installation.5

The space has to stay open after the install, and it has to be big enough for the room. Shaw calculates that a 30-foot room changing 50 degrees from its install temperature moves roughly 1/2 inch.6 On long walls in sunny or poorly conditioned rooms, a standard gap can close. Look for planks touching the wall, spacers left in place, or tile, stone or cabinet bases that the floor was cut tight against. See expansion gaps for click-lock floors.

Room corner with red walls, white baseboards and a wood floor
FIG 01A room corner where a wood floor meets white baseboards below red walls.Photo: Jan van der Wolf, via Pexels

Trim fastened into the floor

Baseboard and quarter round cover the gap. They must not hold the floor down. Daltile says that when moldings are installed, nails or screws must never enter the flooring or the expansion zone.1 Marquis rules out fastening any trim or transition piece through the planks.7 A nail through the edge of a plank pins it. The floor still moves, the pinned edge cannot, and the plank lifts or the joint beside it opens.

Trim pressed down hard can do the same. Set quarter round or shoe molding with a slight clearance above the floor, and fasten it to the wall or baseboard only. Shaw notes that a floor pinned by a trim fastener may separate in the field, so the symptom can show up away from the wall too.6

Caulk that has set hard

Caulk is common at tubs, showers and exterior doors, where water has to be kept out of the gap. The type matters. Elite recommends 100% silicone caulk and does not approve acrylic caulks. Silicone stays flexible and lets the floor move with temperature changes, while acrylic hardens over time.2 National Flooring Products also prefers silicone for its elasticity, and says not to caulk the floor to any permanent or fixed object.8 A bead of hard caulk bonding plank to tub is a pin.

Minimalist corridor with flush white doors and a wood-look floor
FIG 02A corridor with a wood-look floor running past flush white doors.Photo: Max Vakhtbovych, via Pexels

Moisture at the edges

Water tends to arrive at the perimeter: an exterior wall, a door threshold, a leaking supply line in a wall, a wet mop pushed into the corners. On a glued floor, INSTALL notes that adhesives for LVT, VCT and sheet vinyl can re-emulsify in high moisture, causing tiles to shift, curl or lift completely.3 Edges lifting along an exterior wall, with staining or a damp adhesive line, point to moisture. Test before repairing, or the new edge will lift the same way. See moisture testing.

Narrow cuts and cut-off tongues

The last row and the row ends are cut to fit, and small cuts are weaker. Elite recommends a final plank at least twice the width of the plank.2 Daltile says the last planks of rows must be at least 8 inches long.1 A sliver of plank at the wall has little locking profile to hold it flat. Timeless adds that when the first row does not need trimming in width, its unsupported tongue should be cut off so a clean, solid edge faces the wall.5 Plan the layout so both side rows are of reasonable width.

Empty room with a wood floor, baseboards, a window and mirrored closet doors
FIG 03An empty room with a wood floor, baseboards, a window and mirrored closet doors.Photo: hi room, via Pexels

Planks that arrived curled

Some edge curl is in the material before it is laid. FloorFolio asks for cartons to be stored flat and squarely stacked to help minimize rolled or curled edging.4 Daltile asks for cartons stacked no more than five high on a flat surface, away from heating or cooling ducts and direct sunlight.1 Planks stored on edge, on an uneven floor, or near a heater can take a set. Check a few cartons on delivery; see inspecting flooring deliveries.

Heat at the walls

Baseboard heaters, heating registers and glass walls heat the floor along one edge. Continental Flooring notes that even VCT, which is more stable than other vinyl products, can lift at corners or edges where heating is uneven.9 Edges that lift only beside a heat source, and settle when it is off, point to heat.

Diagnosis and repair

  • Edge tight to the wall: pull the trim, trim the planks back to the required space, refit trim with clearance.
  • Trim nailed through the plank: remove the fastener, replace the damaged plank if the hole shows, refasten to the wall.
  • Hard caulk: cut it out, clean, and recaulk with the manufacturer's approved flexible caulk.
  • Moisture: find and stop the source, test, then reset or replace the planks.
  • Curled stock: replace the planks from properly stored cartons.

On commercial jobs, perimeter details are usually shared with other trades: the base installer, the millwork crew, the plumber who seals the fixtures. Put the no-fastener rule and the caulk type in writing for them, because a perimeter failure months later is hard to trace without that record.

Empty room with a light plank floor, gray walls and large windows
FIG 04An empty room with a light plank floor and large windows.Photo: Max Vakhtbovych, via Pexels

Sources

  1. Daltile, “ProSeries Luxury Vinyl Flooring Installation & Care Guide (Rigid Core Click, Glue Down)”. s1.img-b.com/build.com/mediabase/specifications/daltile/1996309/daltile-
  2. Elite Flooring, “Välinge Installation Guide (Woodlands)”. eliteflooringusa.com/links/install-instructions/Elite-Installation-Guide
  3. INSTALL (International Standard & Training Alliance), “Avoiding Moisture Mistakes in Substrate Preparation - INSTALL Floorcovering Professionals”. installfloors.org/news-events/avoiding-moisture-mistakes-in-substrate-pr
  4. FloorFolio, “Installation Guide 2025”. floorfolio.com/wp-content/uploads/2025/FloorFolio-Installation-Guide-202
  5. Timeless Designs, “Click Floating Luxury Vinyl Installation Instructions”. timelessdesignsflooring.com/wp-content/uploads/2023/05/TD-Rigid-Core-Ins
  6. Shaw Floors, “LVP Case Study: How Temperature Affects Dimension”. shawfloors-sherwinwilliams.com/SiteFiles/sherwinwilliamsdigital/Images/L
  7. Marquis Industries, “Rigid Vinyl Plank Installation Instructions (Angle)”. marquisind.com/static/resources/Angle_Angle%20Installation%20Instruction
  8. NFP, “Architect’s Choice LVP Installation Guide”. my-nfp.com/resource/architects-choice-lvp-installation-guide
  9. Continental Flooring, “How Heat Affects Vinyl Flooring in Commercial Settings”. continentalflooring.com/commercial-vinyl-flooring-heat-damage/

General information for the flooring trade. This article was drafted with AI assistance and checked against the sources listed above; the manufacturer's current instructions and the project specification govern any real job. If something here is wrong or out of date, tell us.
