SW-04 · Troubleshooting & RepairsMost weld failures start before the gun is lit. Roll edges are often crushed and should be trimmed; sheets go down at the manufacturer's net-fit gap, typically about 1/32 of an inch; and the groove is usually half to two-thirds of the material depth.1 After welding, skiving in two passes keeps the rod flush; a single heavy pass leaves a concave seam that traps dirt.1 Gun temperature comes from the product's own sheet.2

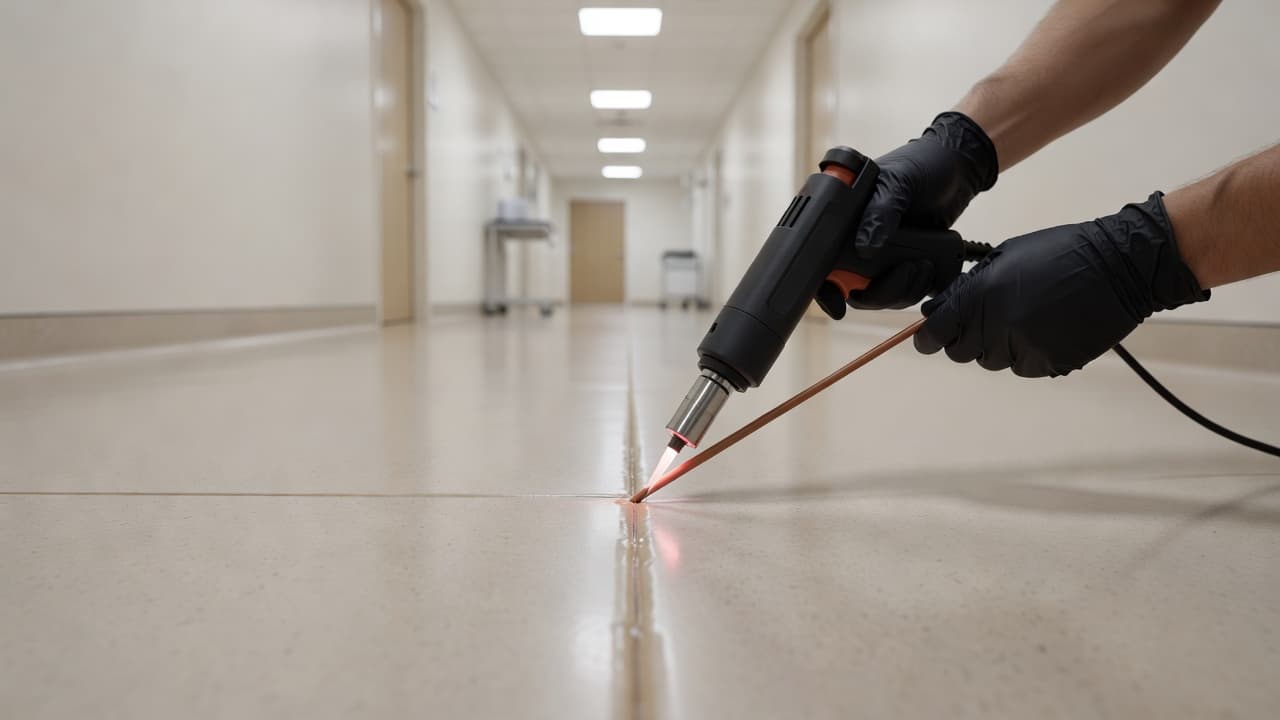

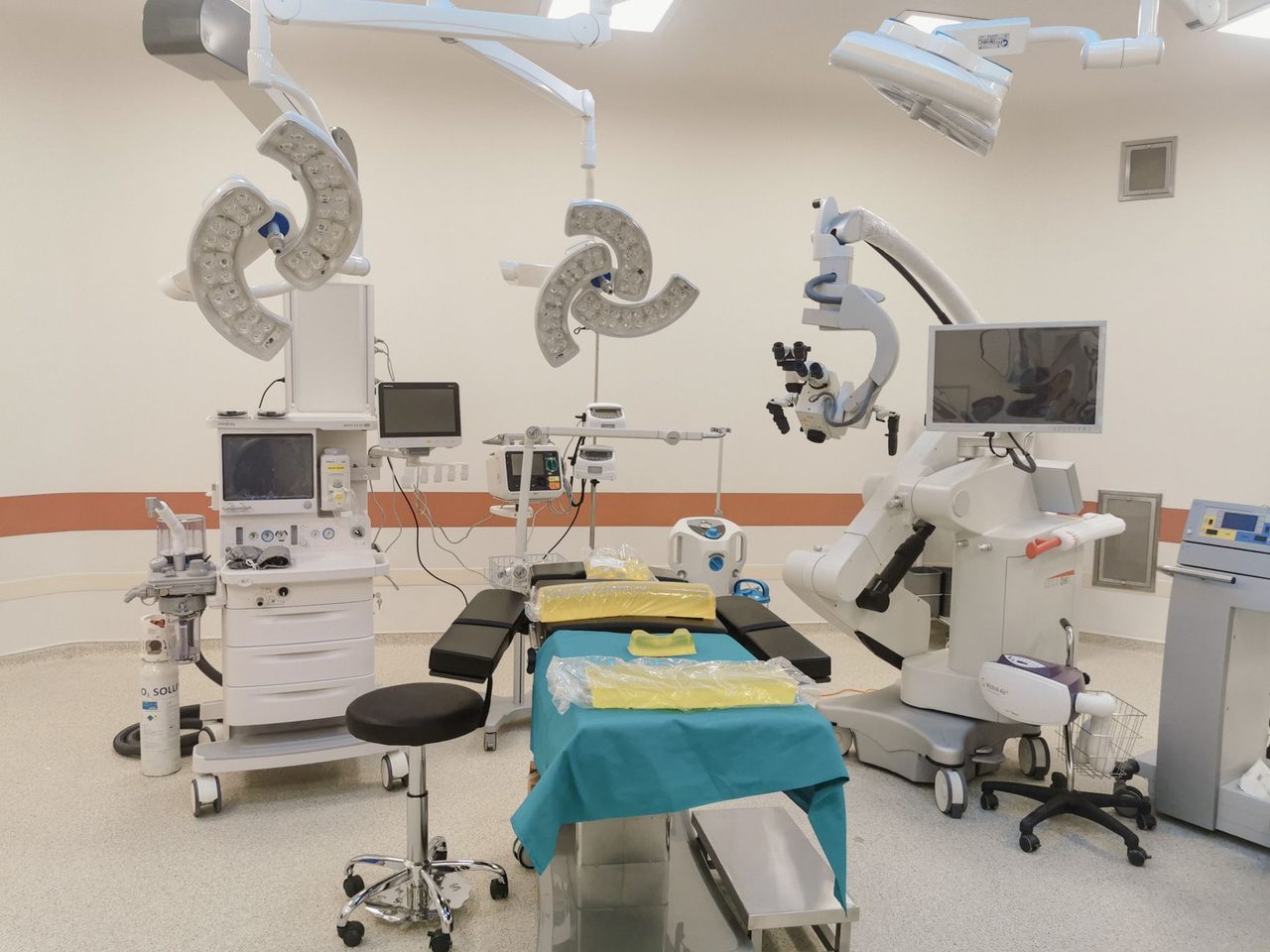

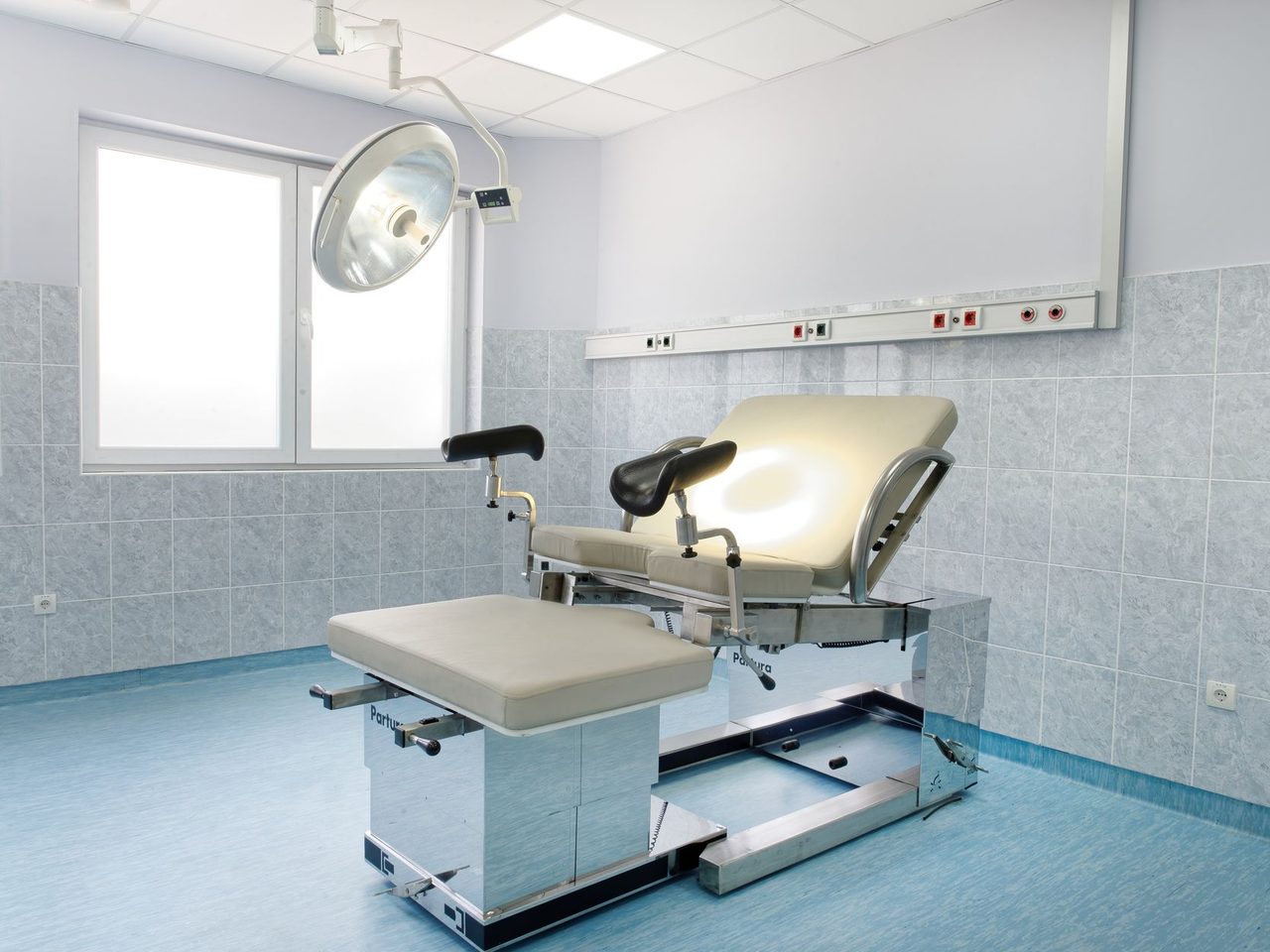

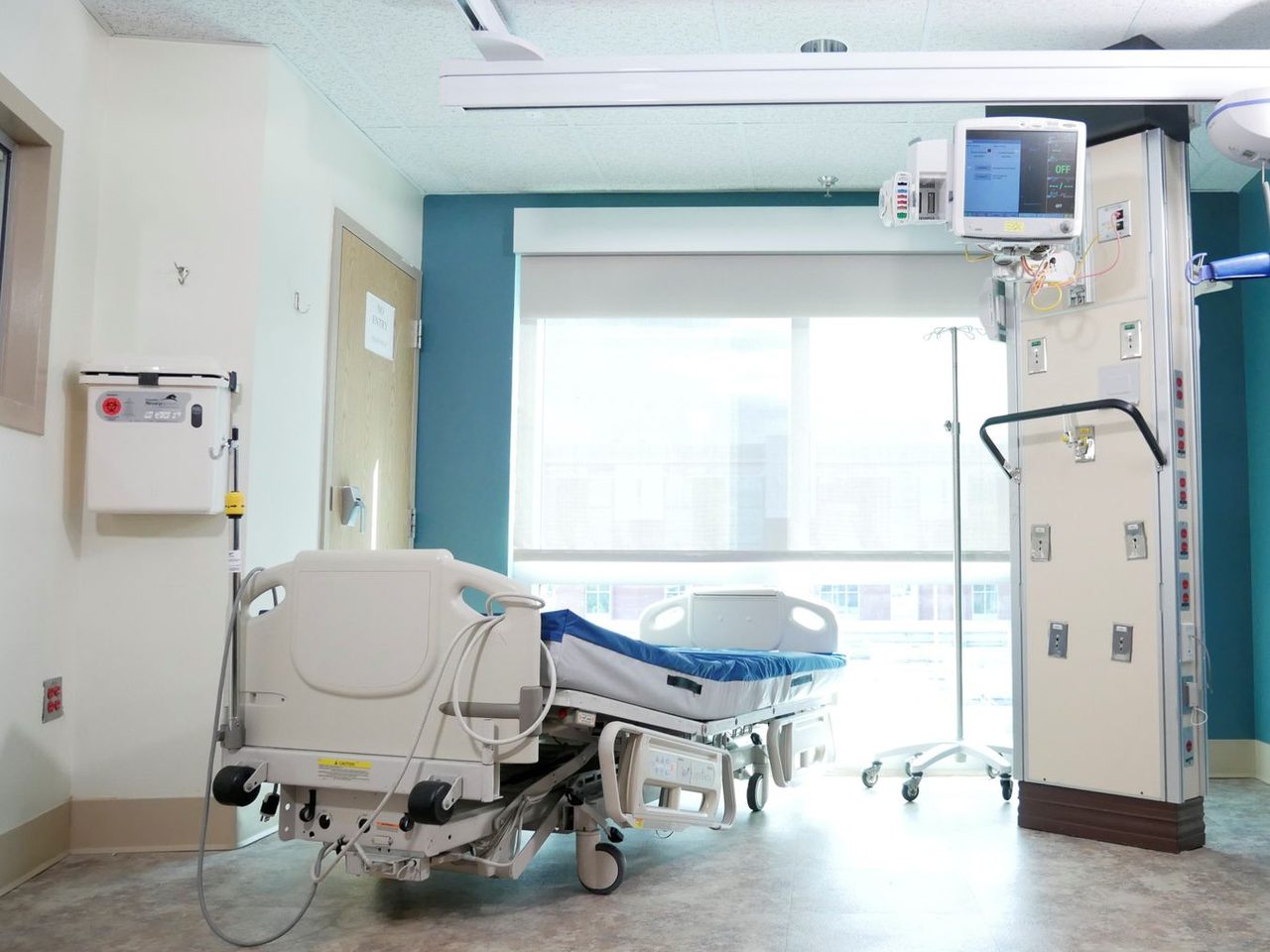

Sheet vinyl in operating rooms, patient rooms, labs and food areas is joined with heat-welded seams. A vinyl rod is melted into a groove cut along the seam, fusing the two sheets into one surface that can be wet-cleaned and disinfected. Done right, the seam is hard to see and keeps water out. Done wrong, it opens, lifts or sinks, and becomes a line where dirt and moisture collect. In healthcare that is more than a looks problem.
David Gross, executive director of INSTALL, the installers' training organization, puts it bluntly in The Construction Specifier. Installers with healthcare training recognize that a failed seam is a potential infection reservoir, not just an aesthetic or warranty issue.1 His article walks through the steps where seams are won or lost. Each one has a failure that shows up later.
The edge of the roll
The weld starts with the sheet edges, before anything is grooved. Gross explains that sheet goods often arrive on rolls about 6 ft wide, stored on end, and a roll can weigh well over 250 lb.1 That weight can crush the edge resting on the floor, leaving it thinner or bowed. The best practice is to trim roughly 12.7 mm (0.5 in.) off that edge with a straightedge or edger tool.1
He notes this step is surprisingly often missed. If one edge is thicker or bowed, the sheets misalign, and every later step, from grooving to skiving, inherits the problem.1 A seam that looks slightly high on one side, or a weld that thins out along part of its length, often traces back here.
The seam gap
The sheets must be fitted to the gap the manufacturer specifies. Gross calls this a true net fit, typically around 1/32 of an inch.1 Both errors cause trouble. A gap that is too wide makes the groove hard to center, so the rod gets too little sidewall and bottom contact to fuse.1 Edges butted too tight tend to peak, which makes it hard for a groover to hold a consistent depth and risks tool runoff and damaged edges.1 Some installers butt sheets tight on purpose. The article treats that as a mistake.
The groove
The groove is a U-shaped channel cut along the seam to take the rod. Gross notes that most manufacturers specify a half to two-third deep groove centered on the adjoining sheets.1 Too shallow and the rod has little to bond to. Too deep and the seam is weakened at the bottom. Off-center and one sheet gets most of the weld while the other gets a thin edge. Check the depth at the start of every seam, and again where the groover changes direction or the seam crosses a different substrate.
Heat and travel speed
Gross writes that when seams are correctly fitted, uniformly grooved, and welded with proper heat and travel speed, the rod bonds to the bottom and the sidewalls of the groove.1 The settings come from the product. For AHF's Natralis and Medintone homogeneous sheet, the tip sheet calls for a temperature of 650°- 850°F and a pre-heat of several minutes. It also specifies full round rods with 4 mm round nozzles.2 A gun that is too cool leaves a rod sitting in the groove without fusing. One that is too hot scorches the sheet edges. Running the same speed and setting on a different product is a common source of both.
Skiving in two passes
Because the rod is round, part of it stands above the floor after welding, and that excess is trimmed, or skived. Gross says certified installers are taught to skive in two passes.1 The first pass, with a spacer on the tool, removes approximately one-half to two-thirds of the excess.1 Cutting through the rod takes downward force, and that force lifts the seam slightly; the lighter second pass creates less lift and leaves the rod flush.1
The shortcut is a single heavy pass. Gross explains that the seam lifts more as it is cut, then settles back with the rod below the surface. The concave seam readily traps dirt, contaminants and moisture.1 He adds that it saves little time, because rework and rejection cost far more.1 A seam that looks fine on day one and turns into a dark line within months is the usual sign.
Finishing the weld
Some products call for a finish over the seam. AHF's tip sheet suggests wiping the seam with a clean, damp cloth after the final skive. When dry, a thin coat of a multi-purpose top coating can be applied, with one or two more coats in high-traffic areas.2 It warns against putting too much on the neighboring wear layer.2 Read the product's own instructions; finishes differ between products.
Seams in the cove
Where sheet vinyl turns up the wall as integral base, the seams go with it. AHF's flash cove instructions say all seams in the flash cove area should be treated the same as seams in the rest of the installation.3 Gross calls flash coving even more demanding than skiving, and notoriously difficult to repair.1 See flash cove details for healthcare rooms.
For specifiers and owners
Gross notes that specifiers rarely vet installers themselves, but they control the criteria installers must meet.1 He points to Infection Control Risk Assessment training as one of the most recognized certifications for healthcare installers.1 In the quality assurance section, require healthcare experience and the training the facility type calls for. Then inspect seams before turnover: run a hand across them, look along them in low light, and reject concave or lifted welds while the contractor is still on site.
