ASTM F1861 classifies resilient wall base by material (thermoset rubber, thermoplastic rubber, vinyl), construction (solid or layered) and style, including cove.1 In rooms that need a continuous cleanable joint, such as operating rooms and labs, flash cove turns the sheet floor up the wall instead.2 3 Whatever the choice, specify the adhesive for the wall finish; non-porous walls need contact adhesive and a bond test.4
Wall base gets little attention in design and a lot in use. In a hospital corridor or an apartment hallway, it is the surface that meets every bed frame, cleaning cart, vacuum and moving dolly. The choice is usually between a resilient cove base glued to the wall and, in some healthcare rooms, an integral flash cove formed from the floor itself. Getting the choice and the specification right avoids most of the callbacks that follow.
How the standard sorts wall base
ASTM F1861 is the standard specification for resilient wall base. It covers products made from rubber or thermoplastic materials, or a combination of them, and excludes rigid products.1 It sorts them three ways:
- Type: TS, vulcanized thermoset rubber; TP, thermoplastic rubber; and TV, thermoplastic vinyl.1
- Group: group 1, solid, and group 2, layered.1
- Style: style A, straight; style B, cove; style C, butt-to; and style D, sculptured.1
The standard also lists the properties tested, including wear layer thickness, flexibility, light and chemical resistance, dimensional stability and staining of adjacent surfaces.1 A specification that names the type, group and style, and requires compliance with the standard, is far more precise than "rubber cove base."

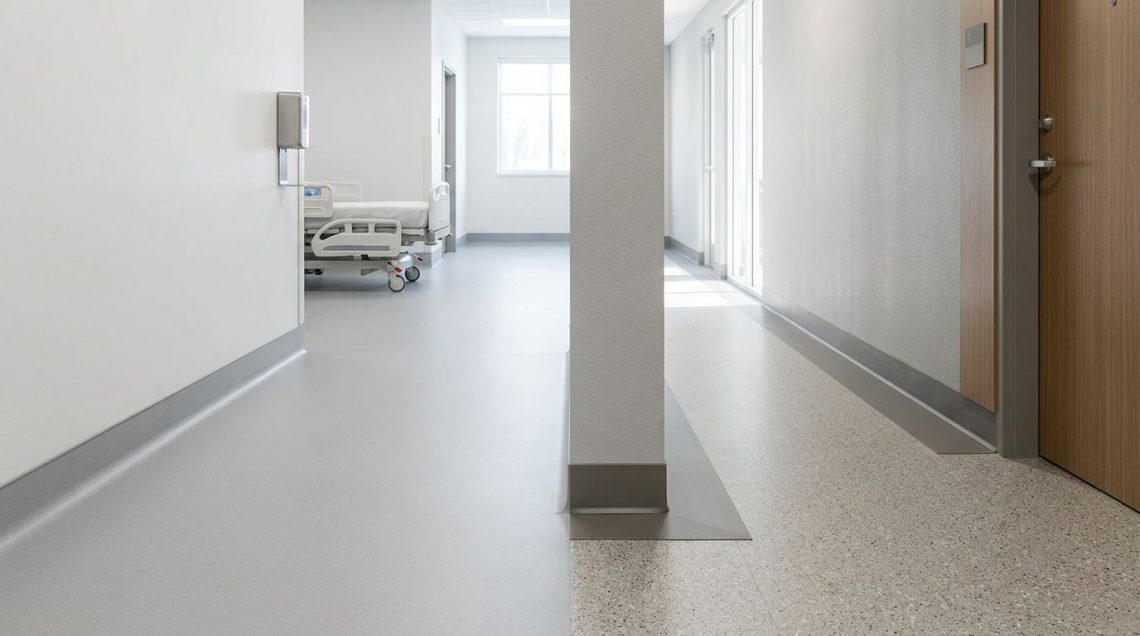

Cove or straight
A cove base has a toe that curves out onto the floor. It is the common choice over resilient and hard floors, because the toe covers the floor edge and leaves a rounded joint that a mop can follow. Straight base, with no toe, is common over carpet, where the carpet runs up to it. In healthcare corridors and multifamily common areas with resilient floors, cove is the default.
The toe has to sit flat. Roppe notes that on its standard-toe base supplied in coils, the toe must be adjusted along a factory-molded relief before installation. Otherwise it will not lie flat and the base will stand above its intended height.4

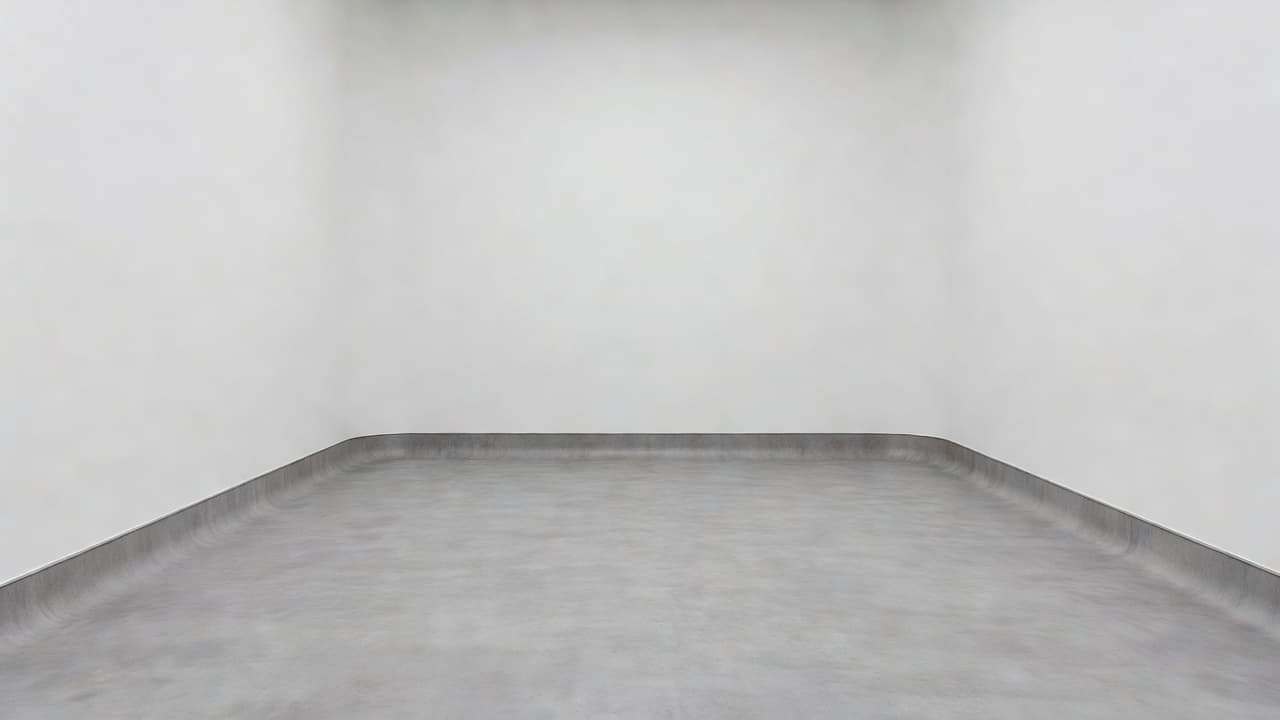

When to flash cove instead
Some rooms need no joint at all between floor and wall. Flash coving, also called integral base, turns the sheet floor up the wall to form its own base.3 David Gross of INSTALL notes it is very common in operating rooms, ICUs and laboratories, where cleanability, durability and long-term performance are critical.2 It runs up the wall 102 mm (4 in.) or more.2 AHF notes that codes usually treat it like baseboard trim for fire rating, and gives a maximum height of 8″.3
The trade-off is cost and skill. Gross calls flash coving highly visible, unforgiving of shortcuts and notoriously difficult to repair.2 Many facilities use flash cove in procedure rooms and wet areas, and resilient cove base in corridors and offices. See flash cove details.

Match the adhesive to the wall
The wall finish decides the adhesive, and it is often where specifications fall short. Roppe's standard wall base adhesive is for porous surfaces. For non-porous ones it calls for a premium contact adhesive, listing vinyl wall coverings, metal, FRP panels, laminates, ceramic tile and non-porous paints.4 It asks for a bond test at least 72 hours before installation.4 Burke says not to install its base over non-porous surfaces unless the covering is removed or a contact cement is used.5 Healthcare and food-service rooms often have FRP or high-performance coatings. Multifamily corridors often have vinyl wallcovering. Both need the non-porous method.
Tamper resistance
In some buildings, people pull base off the wall. Roppe recommends a rubber tile and tread adhesive where extra protection against removal is needed, giving elementary education as the example.4 The same concern applies to some behavioral health spaces and student housing. Write the adhesive into the specification, because the default product will not be chosen for it on site.

The wall below the base
Base needs a solid wall to the floor. Burke says the drywall or other wall substrate must extend to within ¾” of the floor.5 Roppe warns that rough or uneven surfaces may telegraph through the base.4 In multifamily construction, drywall is often held high off the slab. That leaves the bottom of the base unsupported, and it dents and peels. Coordinate the drywall detail with the base before the walls are finished.
Scheduling in occupied buildings
Renovations in hospitals and occupied apartment buildings add a constraint: the base must cure while people use the corridor. Roppe asks for the area and adhesive to stay between 65º F and 85º F for at least 48 hours before, during and after installation.4 It then asks for the base to remain undisturbed for 72 hours so the adhesive can cure.4 Burke asks for 70° F minimum, held for 48 hours after installation.5 Plan corridor work in sections, keep carts and floor machines off fresh base, and tell the facility's cleaning staff which runs are new.
Heights and lengths
Base comes in several heights, and the installation details change with them. Burke's instructions match the cartridge nozzle to the height: a 2-hole nozzle for 2.5”, a 3-hole for 4” and a 5-hole for 6” base.5 Taller base covers more wall damage from carts and cleaning machines. It also shows more of any unevenness in the wall. Coils give fewer seams on long corridors. Lengths are easier to handle in small rooms.
A specification checklist
- Name the ASTM F1861 type, group and style, and the height.
- Choose flash cove where the room needs a continuous cleanable joint.
- Schedule the wall finish behind the base, and the adhesive and bond test for it.
- Call for tamper-resistant adhesive where removal is a risk.
- Detail the drywall to reach the floor.
- Require corners first, no stretching, and a cure period; see wall base installation mistakes.
