SW-03 · Carpet & Soft FlooringA replacement tile disappears only if it matches. Interface ships tiles in dye batches that should not be mixed, so keep spares from the original batch.1 Set the new tile in the same arrow direction as the installation method, on releasable adhesive, which CRI says is designed for easy removal and replacement.2 Fit it tight but not compressed, and slide it in from the side so no yarn is trapped.3
One reason offices, schools and hotels choose carpet tile over broadloom is maintenance. A coffee stain, a burn or a worn patch by a door can be fixed by lifting a few tiles and setting new ones. In practice, the new tile often shows. It is a shade off, its texture runs the other way, or its edges stand proud. Each of those has a cause, and most of them are decided long before the stain happens.
The stock decides the color
Carpet is dyed in batches, and batches differ slightly. Interface ships its products in dye batches that are identified on every carton and should not be mixed unless stated otherwise.1 Milliken makes the installer responsible for maintaining batch integrity during installation.3 The CRI 104 standard for commercial carpet installation asks for planning that includes the quantity per dye lot. It also asks for exact notes on the drawings where dye lot changes occur.2
For repairs, that means spare tiles from the same batch, kept from the original job. A tile bought later will almost certainly come from a different batch. Label the attic stock with the product, color and batch, store it flat in its cartons, and hand it over at closeout. See matching floor colors after a repair for the wider problem.
The arrow decides the texture
Most carpet tiles have arrows on the back showing pile direction. Interface says the arrows matter during installation, and lists its methods: non-directional, monolithic, quarter-turn, brick and ashlar.1 In a monolithic installation all arrows point the same way. In a quarter-turn installation, tiles are turned 90 degrees to one another.1 A replacement set with its arrow the wrong way reflects light differently from its neighbors, and reads as a different color even from the same batch.
Before lifting the damaged tile, check its arrow and mark it on the floor or a neighboring tile. Products designed for non-directional installation still carry arrows, which Interface says can be ignored.1 See carpet tile installation patterns.
What is holding it down
Tiles are usually set on a releasable adhesive or on connectors, not a permanent glue. CRI 104 describes modular carpet adhesive as a pressure-sensitive type for releasable installation.2 The design of the adhesive is to prevent lateral movement of tiles and allow easy removal or replacement.2 On a connector system, Interface says to lift the tile and peel it from the connector, or cut through the connectors joining the tiles, then replace it.1
Clean before the new tile goes down. CRI notes that old adhesive residue must be removed or encapsulated before new adhesive is applied, to prevent adhesion problems and contamination.2 On a connector system, Interface says connectors go under every cut tile and any tile adjoining a cut tile. A repair at the edge of a room needs new ones.1
Fit: tight, not compressed
The new tile has to fill the hole exactly. Too loose and it shows a gap. Too tight and it peaks. Milliken says modules should be tight but not compressed, and that peaking occurs when they are too tight.3 Interface asks for the backing of adjacent tiles to touch, and warns that too much pressure on neighboring tiles makes them peak or buckle.1 Loose joints, it says, result in movement and poor floor performance.1

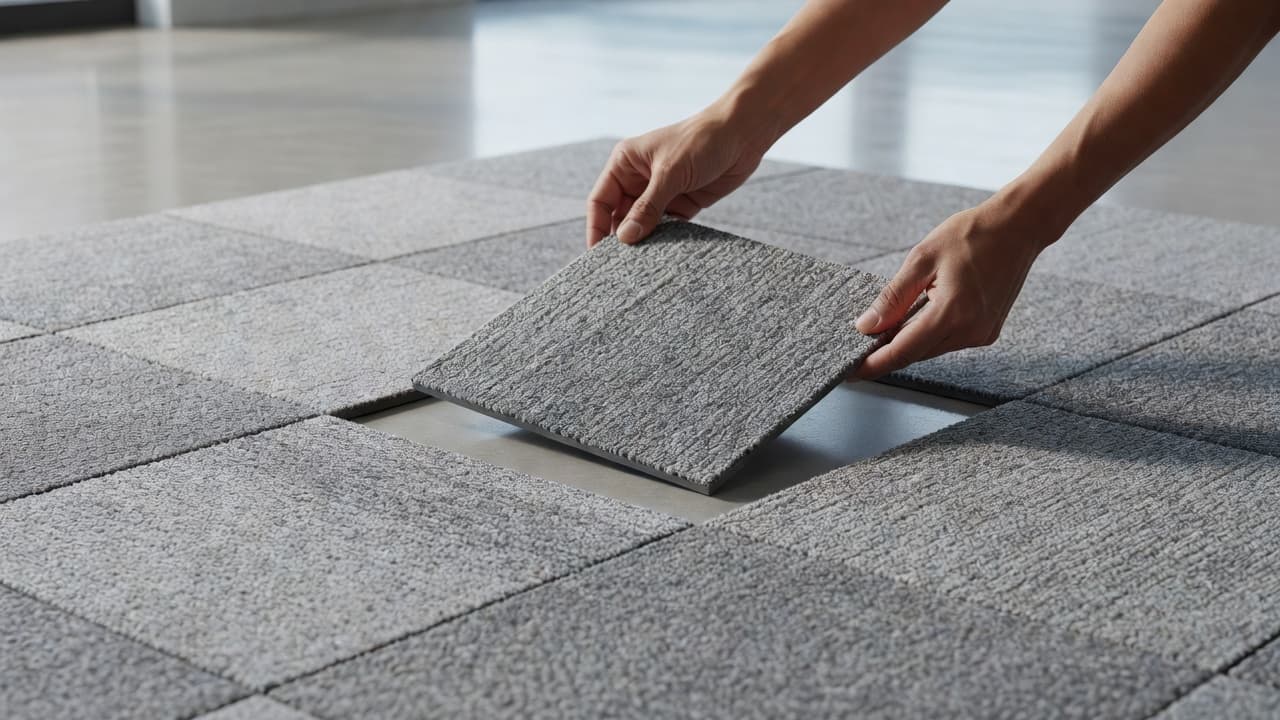

Set the tile without trapping pile in the joint. Milliken asks for modules to be slid into position from the side to avoid trapped tufts.3 Interface describes brushing the face pile back, placing the tile, and pulling it in to touch its neighbors.1 Check the joints with your fingers once it is down.
Condition the new tile
A tile carried in from a cold van behaves differently from one that has sat in the room. Interface asks for products to be left in the box and conditioned for at least 24 hours at a minimum of 18°C (64°F) before laying.1 It also notes that cut pile products can show temporary pressure marks from packing and storage, which vanish as the tufts recover.1 A fresh tile that looks flattened may settle in a few days. Do not judge the match on the first afternoon.
Keep traffic and furniture off the area until the tile is settled. Interface warns that heavy furniture or wheeled traffic can dislodge tiles under certain conditions, and asks for plywood or hardboard sheets when heavy items are moved.1
Why a perfect replacement can still show
Even with the right batch, direction and fit, a new tile can stand out. Its neighbors have seen years of traffic and cleaning. The surrounding carpet is usually a little flatter and a little duller. Options are to take the replacement from a low-traffic area, such as under a desk or in a closet, and put the new tile there instead. The worn-in tile then goes into the visible spot. On large repairs, replace a whole bay or a complete area to a natural break rather than scattering new tiles through old ones.
A replacement routine
- Note the arrow direction of the damaged tile before lifting it.
- Take the replacement from labeled stock of the same batch.
- Remove or encapsulate old adhesive residue; renew connectors where used.
- Condition the tile in the room before setting it.
- Slide it in from the side, tight but not compressed, and check the joints by hand.
If the joints around the repair keep opening, the problem may be the installation rather than the tile; see carpet tile seams showing.
Sources
- Interface, “Carpet Tile Installation Instructions”. interface.com/content/dam/interfaceinc/interface/technical/emea/installa
- Carpet and Rug Institute, “CRI 104 Standard for Installation of Commercial Carpet”. carpet-rug.org/wp-content/uploads/2019/03/CRI-104-STANDARD-For-INSTALLAT
- Milliken, “Modular Carpet Installation Guidelines”. contenthub.milliken.com/api/public/content/212b9643130e469aa098eefd05147
General information for the flooring trade. This article was drafted with AI assistance and checked against the sources listed above; the manufacturer's current instructions and the project specification govern any real job. If something here is wrong or out of date, tell us.
