Carpet Tile Seams Showing: Gaps, Peaks, Trapped Yarn and Direction, and What Fixes Each

A carpet tile floor is a grid of joints. On a good installation, the joints blend into the texture. On a poor one, the grid shows as lines of light, ridges along the joints, or open cracks between tiles. Owners notice it first in long corridors and in rooms with low-angle light. The causes are few, and most can be identified on site in a few minutes.

What a good joint looks like

The CRI 104 standard for commercial carpet installation describes the target: the completed installation should be tight but not compressed.¹ It gives a simple check. Measure the distance covered by 10 tiles installed with no visible gaps, peaks or overlaps. The measurement should equal 10 times the tile size, within 1/4 inch, unless the manufacturer states otherwise.¹ It notes this indicates correct placement that prevents compression or gapping.¹ Run the check in several directions and areas. It turns an argument about appearance into a measurement.

Too tight: peaking

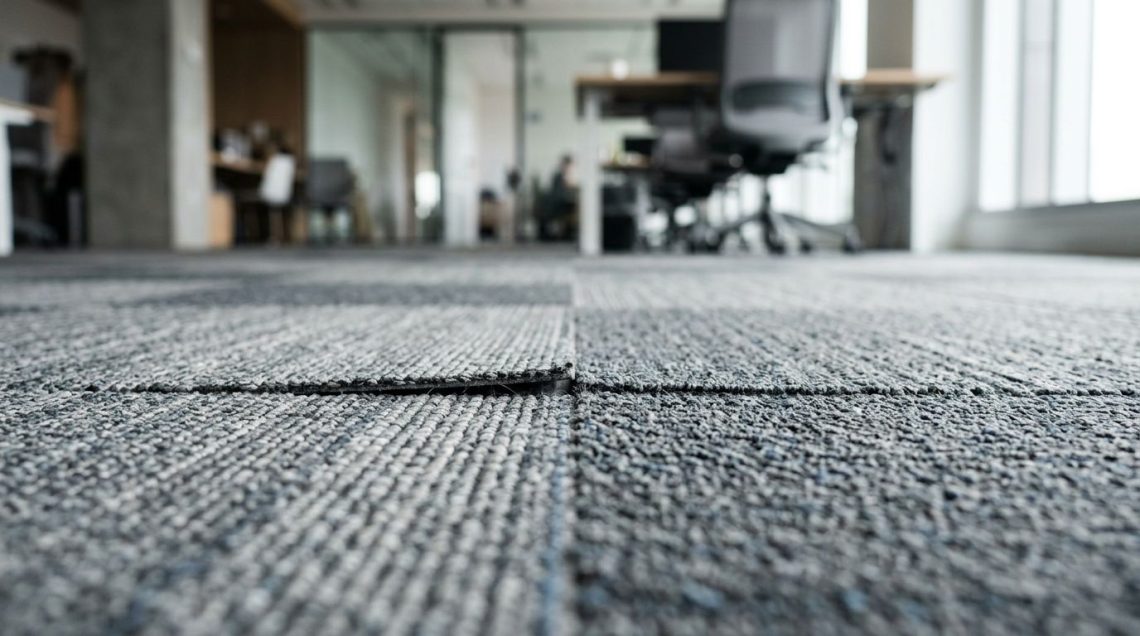

Tiles pressed in too hard push against their neighbors, and the joints rise into ridges. Milliken says modules should be tight but not compressed, and that peaking occurs when they are too tight.² Interface warns that too much pressure on adjoining tiles will cause them to peak or buckle.³ Peaked joints catch light along their length and wear faster at the ridge. If the 10-tile measurement comes out long, compression is the likely cause. The fix is to lift and reset the area, taking out the excess.

Too loose: gaps that grow

Tiles set loosely leave small gaps that seem harmless on day one. Milliken explains that a loose installation never achieves the best appearance, and can show gaps over time as the looseness accumulates in one area.² Interface says loose joints result in movement and poor floor performance.³ Traffic and rolling loads push the tiles together, so the slack migrates to one joint, which then opens. A short 10-tile measurement and an open joint at a wall or transition point here.

Perimeter fixing matters too. Interface asks for the whole tile nearest the wall and all perimeter cuts to be held by connectors, adhesive or tape. In an open perimeter design, a fixed reducer strip anchored to the floor locks the tiled area in place.³

Yarn caught in the joint

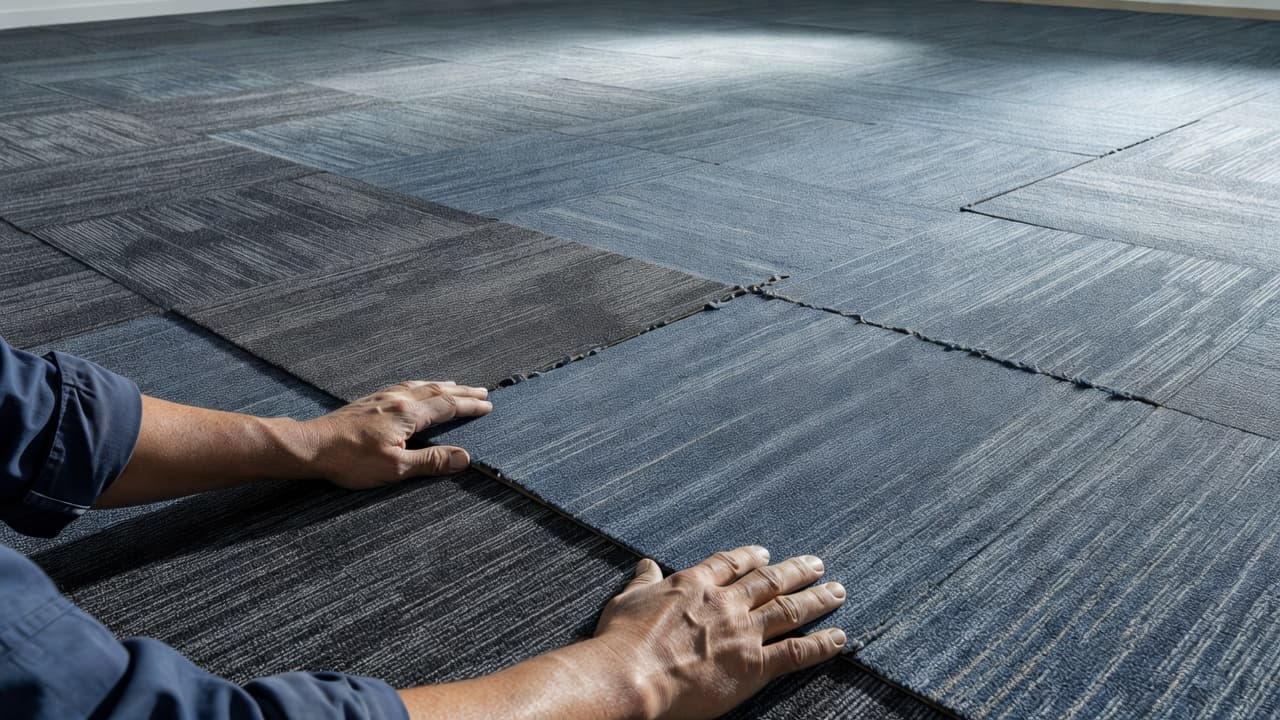

Pile trapped between tiles holds the joint open and leaves a tuft standing along the seam. Milliken asks for modules to be slid into position from the side to avoid trapped tufts.² Interface describes brushing the face pile back, placing the tile, and pulling it in to touch its neighbor, avoiding any pile caught in the joint.³ CRI 104 also warns installers to take care not to trap yarn between tiles.¹ A trapped tuft can sometimes be teased out with a tool. A row of them means the tiles need resetting.

Direction

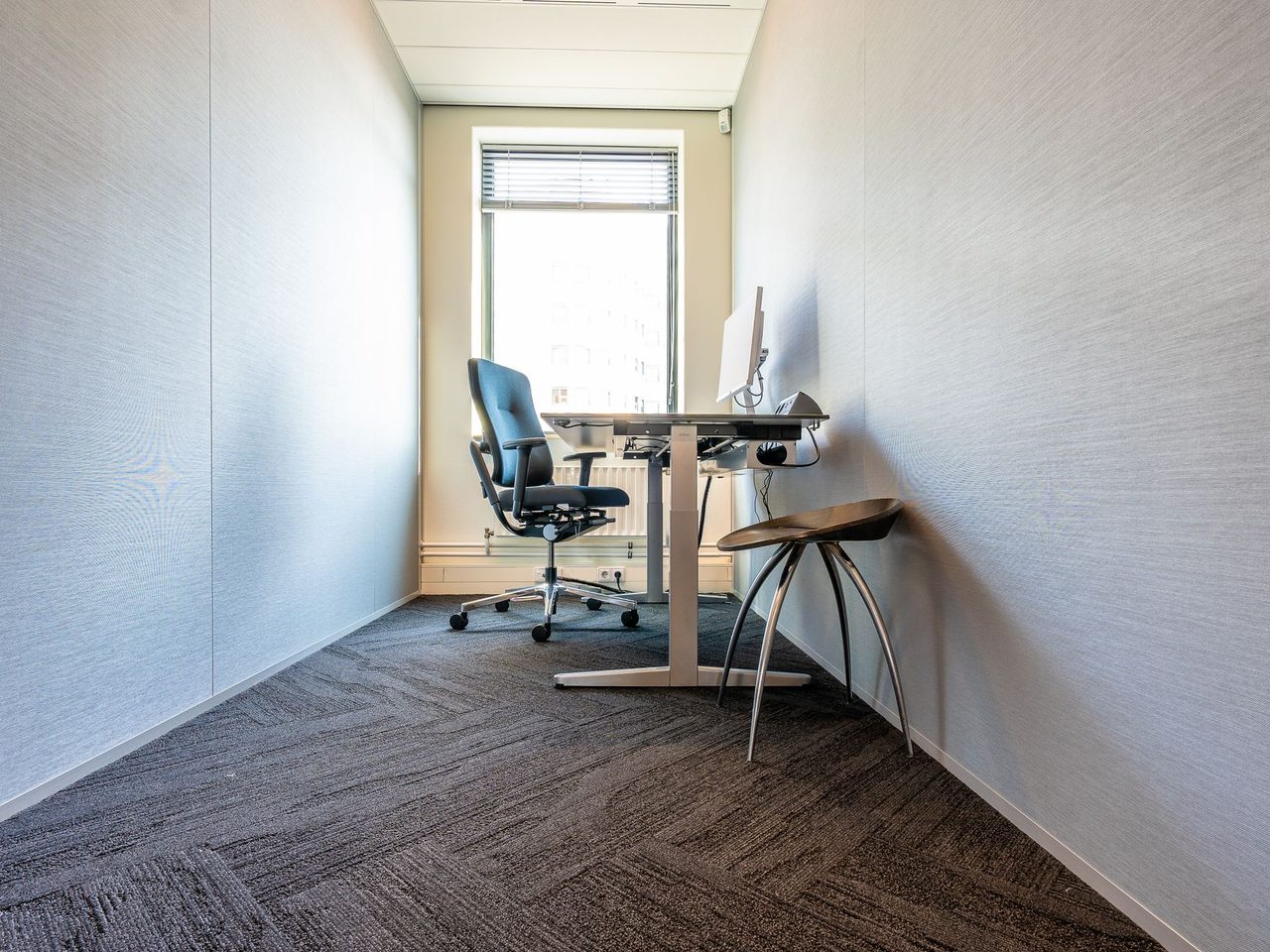

A tile turned the wrong way reflects light differently and shows a hard edge against its neighbors. Interface says the arrows on the back denote pile direction and are important during installation.³ Milliken recommends that, for monolithic and ashlar designs, arrows point along the heaviest-trafficked walkway, not across it, and should not run across hallways unless unavoidable.² Turn back a few suspect tiles and look at the arrows. One rotated tile in a monolithic field is easy to see once you know to look.

Frayed cut edges

Cut tiles at walls and around obstacles show their seams if the cut is rough. Milliken asks for tiles to be cut from the face using new, sharp blades with firm pressure, and warns that old or worn blades may lead to frayed edges.² Interface asks for the perimeter cut to be fitted with its factory edge against the last full tile, and the cut edge to the wall.³ A frayed edge in the middle of the floor means a cut tile was placed where a factory edge belonged.

Something underneath

Joints in the substrate can show through. CRI 104 says that on raised access floors, tile seams should be offset from the panel seams unless otherwise specified.¹ Seams that line up with panel joints move as the panels flex. CRI also says not to install carpet over expansion joints.¹ Interface says expansion joints should never be filled with screed and the floor covering taken across.³ A seam line that runs straight across a room, ignoring the tile grid, often follows something below.

Light across the floor

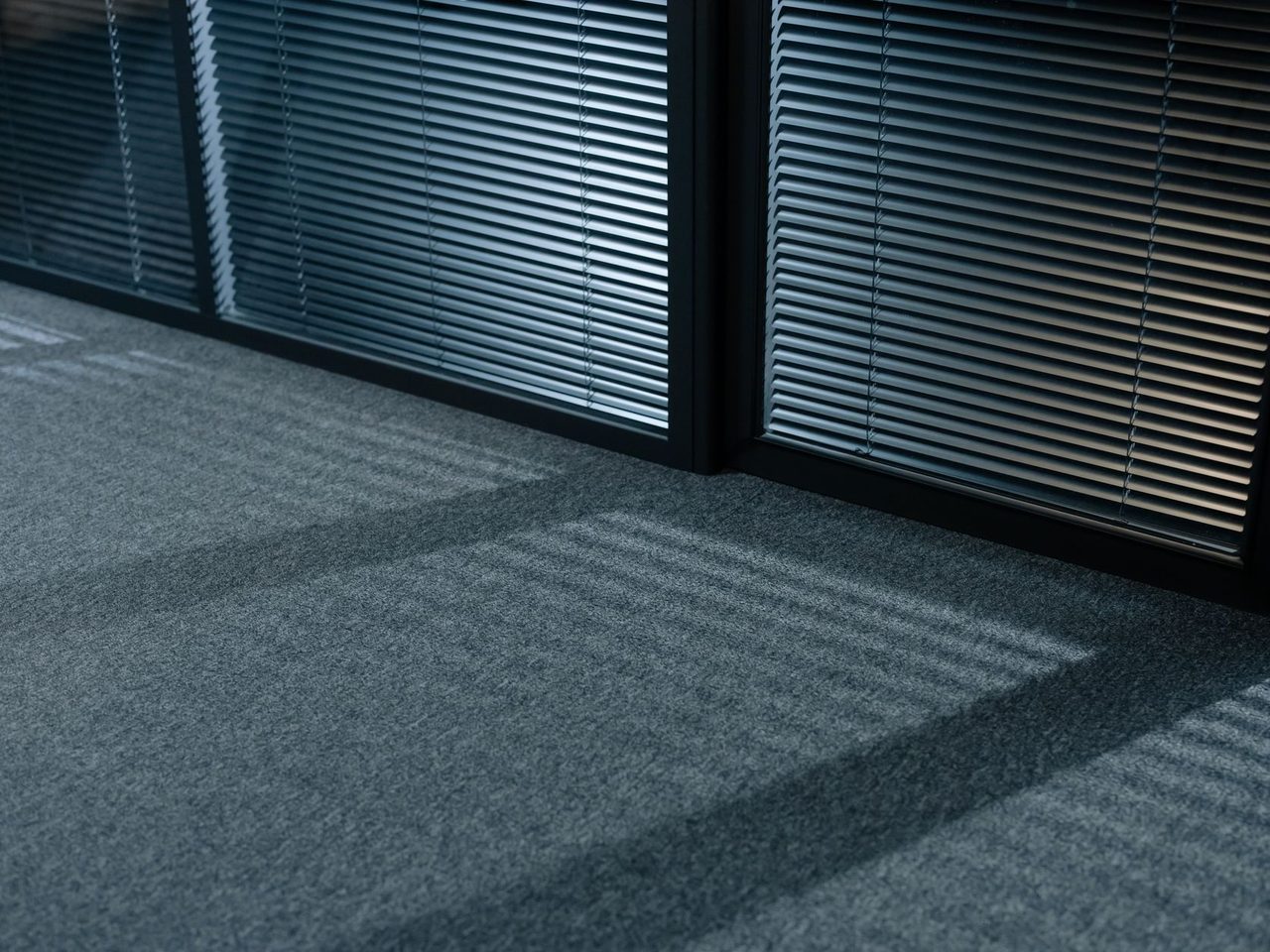

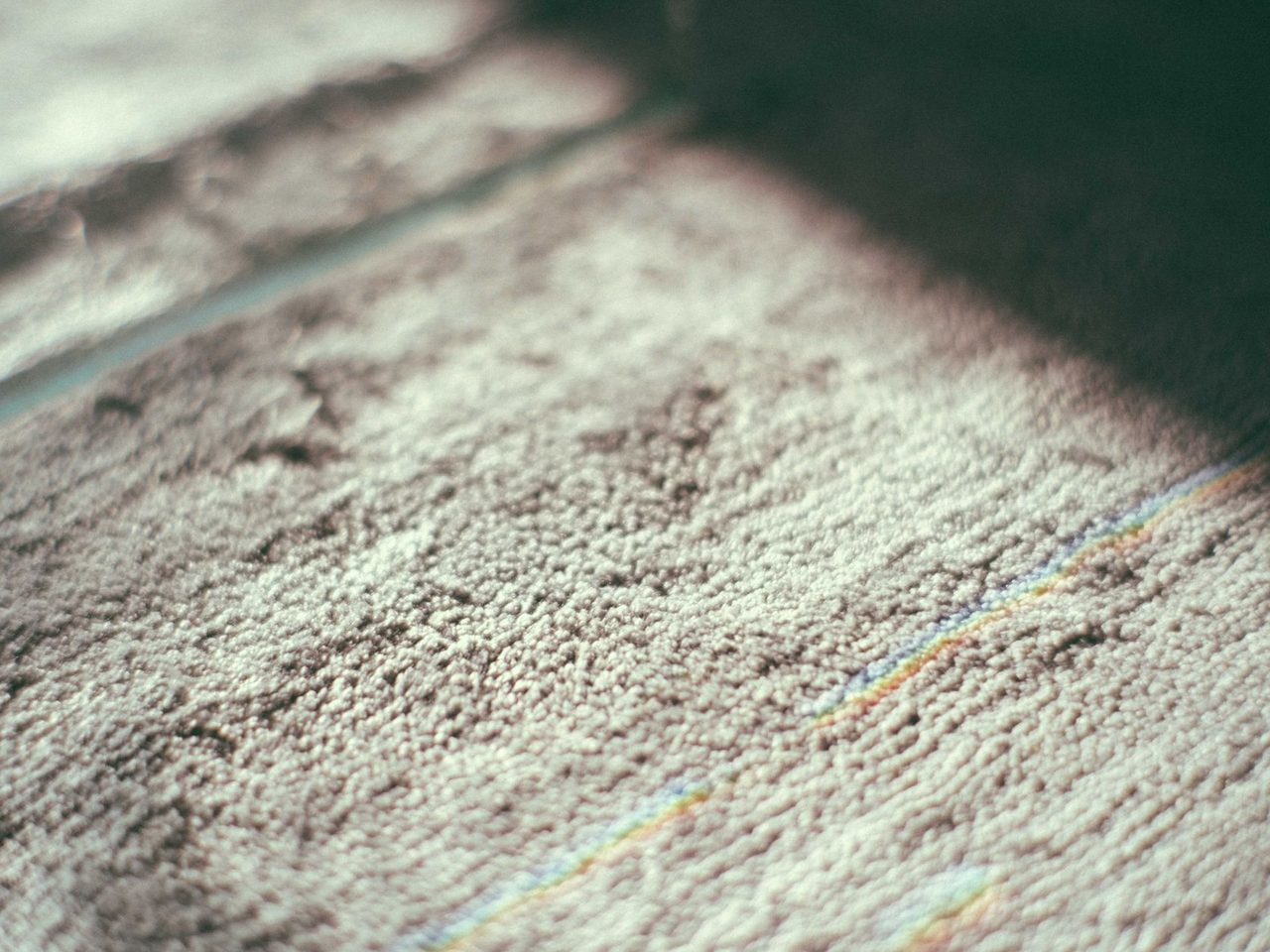

Some seams only show at certain times of day. Low sun through a window wall, or a row of wall-washers in a corridor, rakes across the surface and picks out every joint. CRI 104's guidance on broadloom seams asks for them to be placed so natural light does not strike across them.¹ Tiles cannot avoid having joints, but orientation helps. For some plank products laid ashlar, Interface recommends laying the planks lengthwise, parallel to the side light source.³ If a complaint comes from a single sunny zone, look at the floor at that hour before changing anything.

Movement after installation

Joints that were tight at handover can open when tiles are pushed around. Interface warns that heavy furniture or wheeled traffic can dislodge carpet tiles under certain conditions, and asks for plywood or hardboard sheets when heavy items are moved.³ Milliken says the same for heavy furniture and supplies.² In areas with heavy or rolling traffic, and on ramps, it says a stronger tack may be needed to prevent lateral movement.² Interface says its connector system is not recommended for stairs, ramps or spaces with heavy rolling loads.³ Gaps that appear along a mail-cart route or near a copy room usually trace here.

Diagnosis on site

What you see	Check	Likely cause
Ridges along joints	10-tile measurement long	Tiles compressed1
Open joints, worst at one spot	10-tile measurement short	Loose installation1
Tufts standing along seams	Part the pile	Trapped yarn
One tile looks a different shade	Arrow on the back	Direction
Fuzzy seam at cuts	Which edge is cut	Worn blade or cut edge inward
Straight line across the grid	Substrate below	Panel or slab joint

Most fixes mean lifting and resetting tiles, which releasable adhesive is designed to allow. See replacing a carpet tile.

Sources

1. Carpet and Rug Institute, “CRI 104 Standard for Installation of Commercial Carpet”. carpet-rug.org/wp-content/uploads/2019/03/CRI-104-STANDARD-For-INSTALLAT
2. Milliken, “Modular Carpet Installation Guidelines”. contenthub.milliken.com/api/public/content/212b9643130e469aa098eefd05147
3. Interface, “Carpet Tile Installation Instructions”. interface.com/content/dam/interfaceinc/interface/technical/emea/installa

General information for the flooring trade. This article was drafted with AI assistance and checked against the sources listed above; the manufacturer's current instructions and the project specification govern any real job. If something here is wrong or out of date, tell us.
